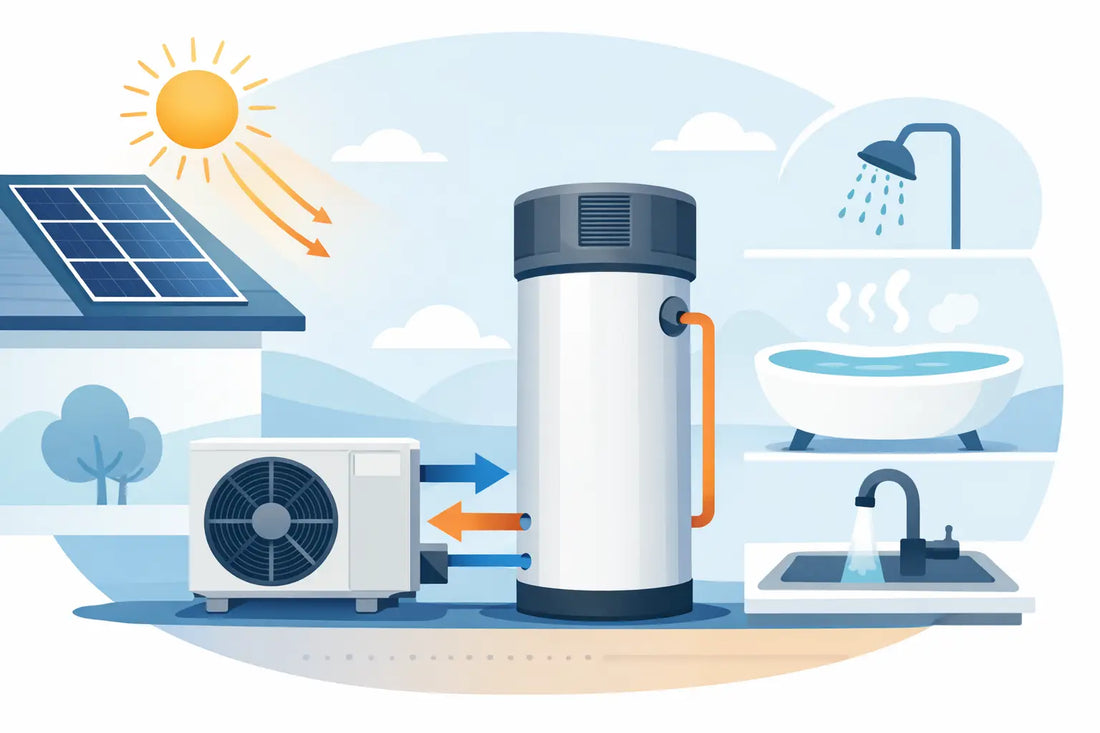

Heat Pump Hot Water Solar Integration Explained

A heat-pump hot water system can be one of the biggest controllable loads in an all-electric home. Get the timing right and heat pump hot water solar integration turns excess rooftop generation into stored hot water for showers, dishes and laundry - instead of sending it to the grid for a modest feed-in credit.

For Adelaide households with solar already on the roof, this is often a smarter first electrification move than people expect. Hot water is used every day, electric storage is built into the tank, and a well-set system can run mostly while the sun is producing. The catch is that not every heat pump, tariff, roof size or household routine suits the same setup.

Why solar and heat-pump hot water work so well

A conventional electric storage tank uses a resistance element, much like a giant kettle. A heat pump moves heat from the surrounding air into the water instead. That means it can typically produce several units of heat for every unit of electricity it consumes. Exact results vary with temperature, model and settings, but the difference in running cost can be substantial.

Solar adds another layer of value. A heat pump needs electricity when it is operating, but the hot water it produces can be stored until the evening or next morning. Your tank effectively becomes a thermal battery. It is not a replacement for a home battery, because it cannot power lights, appliances or an EV, but it can remove a sizeable electrical load from expensive after-sunset periods.

This matters particularly where daytime solar exports earn far less than the electricity price paid after work. Rather than exporting a few kilowatt-hours at a low rate, you can use that generation to heat a full tank for the household.

The key decision: schedule it around your solar

The simplest solar integration is usually a timer. Set the heat pump to run from late morning into the afternoon, when solar output is likely to be strongest. For many homes, a window such as 10 am to 3 pm gives the system time to heat water while avoiding the early-morning and evening peaks.

That does not mean the heat pump will run for five straight hours every day. Most units respond to the tank temperature and only operate when heat is required. The timer simply gives them a solar-friendly opportunity to do their work.

A smart controller, energy management system or compatible inverter can take this further. It may monitor solar generation, household demand, battery state of charge and grid imports before allowing the heat pump to run. This is useful for homes with larger PV systems, variable daytime consumption or a battery that needs to retain charge for the evening.

There is a trade-off. A highly selective solar-only control strategy can leave the tank short after a stretch of poor winter weather. A practical setup gives the system a daytime solar preference, then permits a backup heating window if the water temperature falls too low. Reliable hot showers still come first.

Solar diverters are not always the answer

Some systems use a solar diverter to send surplus solar power to a resistance element. That can be effective with an existing electric tank, especially if replacing the whole system is not yet on the cards. But heat pumps are generally more efficient than resistance heating, so a diverter is not automatically the best long-term choice.

Heat pumps also tend to have a compressor load that is better handled by an appropriate dedicated circuit and manufacturer-approved controls rather than a basic export trigger. Check the equipment compatibility before buying clever add-ons. A lower-cost timer often delivers most of the benefit without making the system harder to live with.

Size the tank for the people, not just the panels

A common mistake is sizing hot water from solar capacity alone. A huge solar array does not make a too-small tank work for a busy family, and an oversized tank can create unnecessary heat losses if it is rarely used.

As a broad guide, couples with moderate use may be comfortable with around 200 litres, while families often look at 250 to 315 litres or more. Usage patterns matter. Teenagers taking long showers, a large bath, multiple bathrooms, guests and washing machine habits can all push demand up. Homes using solar to run appliances through the day may also benefit from a larger tank that absorbs more generation.

Location matters too. Adelaide's generally mild climate is favourable for heat-pump performance, but a unit still needs airflow. Avoid tight, enclosed cupboards and choose a position that allows access for servicing, drainage and safe installation. Heat pumps make fan and compressor noise, so keep the unit away from bedroom windows, quiet entertaining areas and close neighbour boundaries where possible.

Should the heat pump run from your solar battery?

It can, but it should not be the default plan. If the heat pump starts after sunset and draws from your battery, it can consume energy that may be more valuable for cooking, lighting, refrigeration and evening household use. In a blackout, preserving battery capacity is even more important.

The strongest arrangement is normally solar first, hot water second, then battery charging and grid use according to your tariff and priorities. But every household is different. A large battery, a high-capacity solar system and a time-of-use plan with cheap daytime or overnight rates may justify different automation.

For example, some South Australian households can use a retailer's free-power window to top up hot water at no energy charge when solar output is poor. Others may prefer to prioritise battery charging before heating water because evening grid prices are steep. The best answer comes from looking at your interval data, not guessing from annual consumption alone.

Think about inverter and electrical capacity

A heat pump is not usually the largest load in an electrified home, but it joins air conditioning, induction cooking, EV charging and other appliances on the switchboard. On single-phase homes, load management becomes more relevant as these upgrades stack up. Three-phase homes have more flexibility, although circuit design and phase balancing still need professional attention.

If you are installing solar, a hybrid inverter, battery and heat pump as one project, plan the loads together. A properly designed system can coordinate charging, export limits and high-demand appliances instead of treating each upgrade as a separate job. This is where a practical home energy plan can save more than chasing the cheapest individual product.

Installation details that protect the savings

Heat-pump hot water is plumbing and electrical work, not a DIY weekend project. The system needs compliant electrical protection, suitable plumbing connections, pressure relief drainage and an installation position that meets manufacturer requirements. If it is replacing a gas unit, factor in safe gas disconnection and any changes needed to the existing location.

Ask your installer how the system will be controlled after commissioning. You should know the programmed operating window, the backup behaviour, how to activate a temporary boost, and whether the unit has an app or tariff input. Also ask how the unit handles legionella protection cycles. These periodic high-temperature cycles are normal and may use an electric element or altered heat-pump operation, depending on the model.

Do not judge performance from one sunny day. Watch imports, solar exports and hot-water availability across several weeks, including cooler weather. If the tank is regularly heating after dark, a simple timer adjustment may fix it. If the household is running out of hot water, the solution may be a temperature setting, schedule change or larger tank - not necessarily more solar.

Build a home energy system that works as one

The real win is not merely replacing gas or installing another appliance. It is making solar generation do more useful work at home. A heat pump turns cheap daytime electricity into a daily essential, while a battery can cover the evening, support selected backup circuits and help you ride out higher time-of-use pricing.

For households planning solar panels, battery storage and hot water together, OG Trade can help compare the right order of upgrades, system capacity and controls for the way your family actually uses energy. The goal is not complicated automation for its own sake. It is dependable hot water, lower grid imports and a home that makes better use of every bright Adelaide afternoon.

Start with your hot-water demand and solar production profile, then choose controls that are simple enough to trust. The best system is the one quietly heating tomorrow's showers while your roof is already doing the work.
