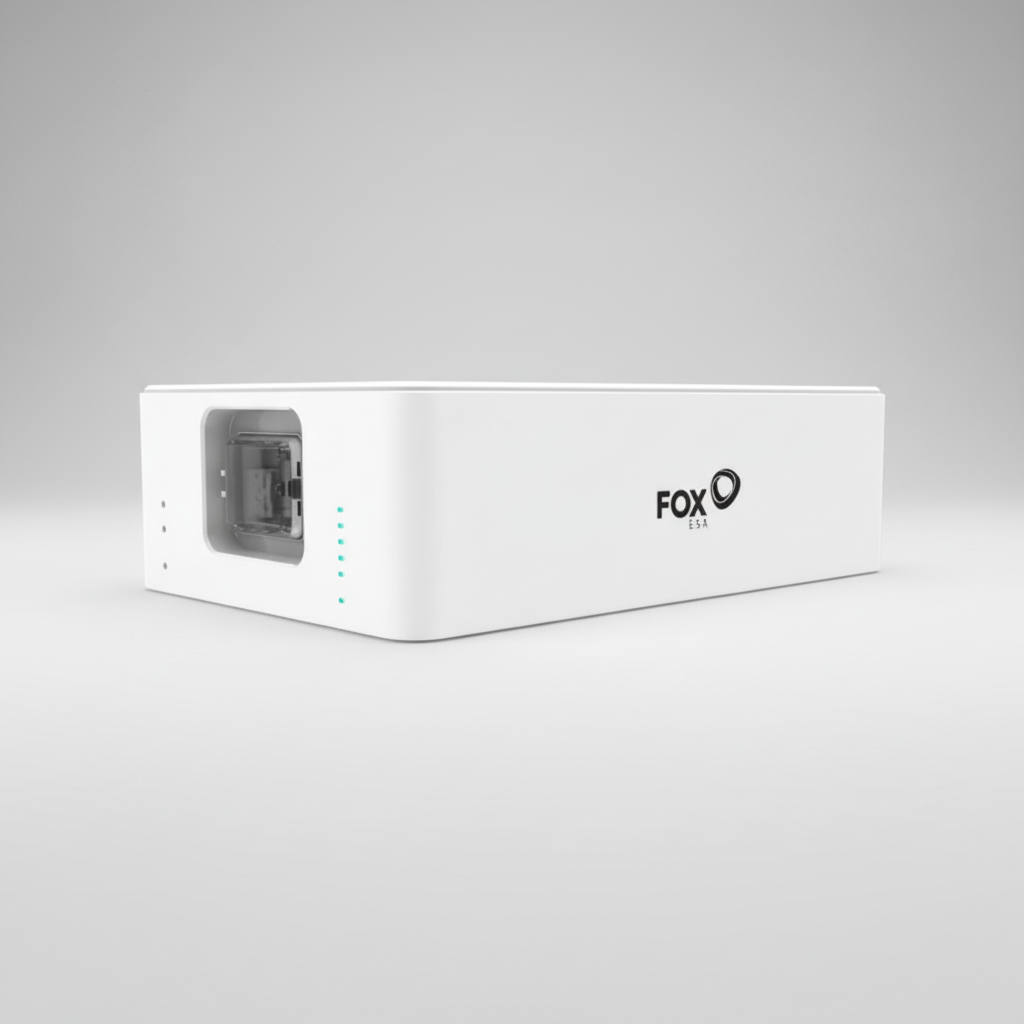

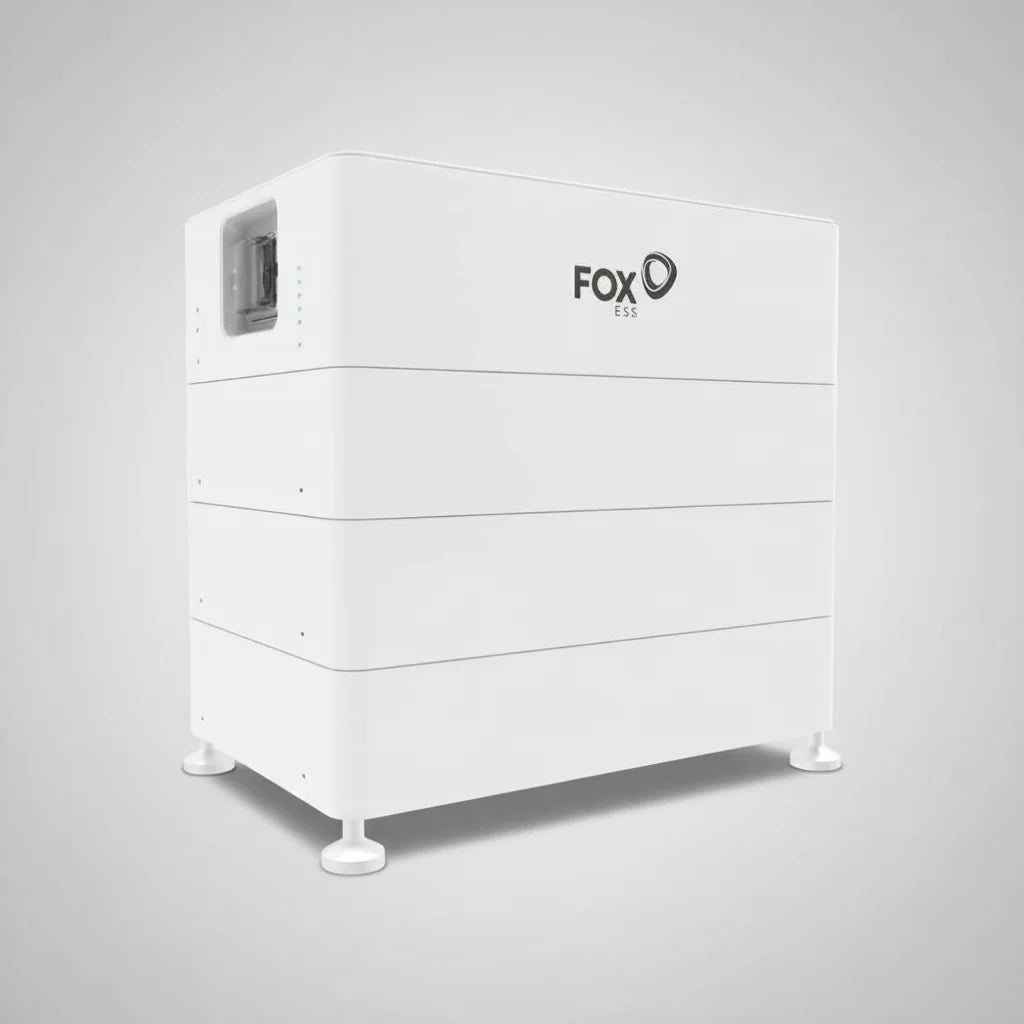

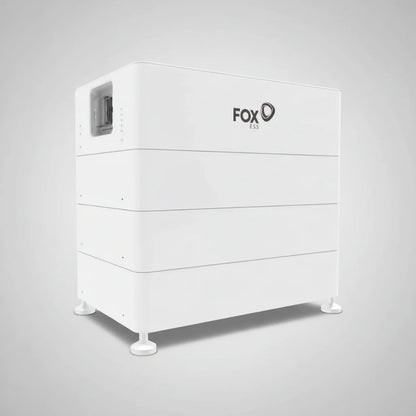

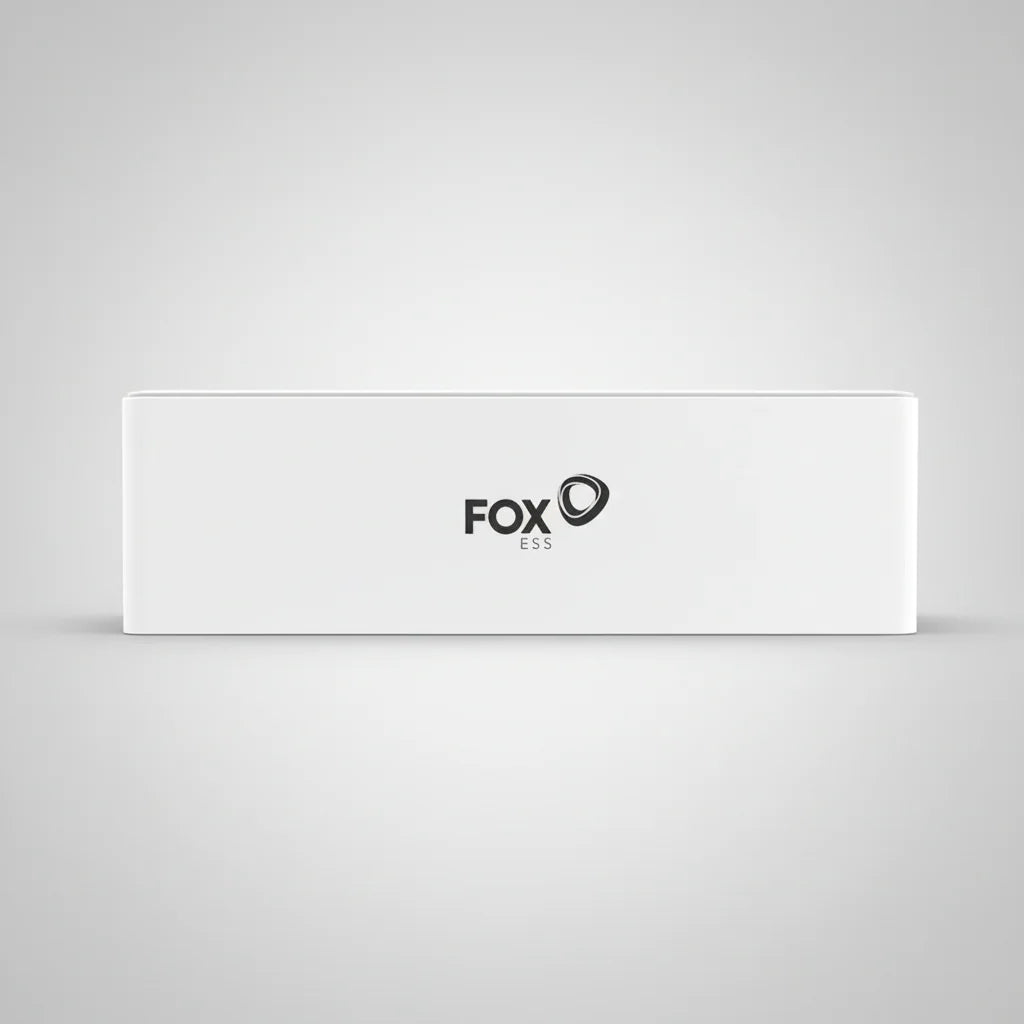

FOXESS - EQ4800-M MASTER Battery

The Fox ESS Master Battery EQ4800-M is the control and communication module that forms the foundation of the Fox ESS low-voltage battery stack. With a usable capacity of 4.66kWh, it delivers safe, stable and scalable energy storage suitable for a wide range of Australian homes.

Specification

Weight (kg): 47
Product Dimension (mm): 650 (L) x  310 (H) x  450 (W)

Recommend Discharge Current (A): 30
Max. Charge/Discharge Current (A): 50
Peak Discharge Current (A): 65@60sec

Battery Pack Round-Trip Efficiency (%): >95
Depth of discharge (%): 90
Cycle Life: ≥6000

Operating Temperature (°C): Charge: 0 ~ 55
Discharge (°C): -10 ~ 55
Storage Temperature (°C): -10 ~ 35
Cooling method: Natural Convection
Humidity (%): 5 ~ 95 (No Condensing)
Altitude (m): Max. 2,000
